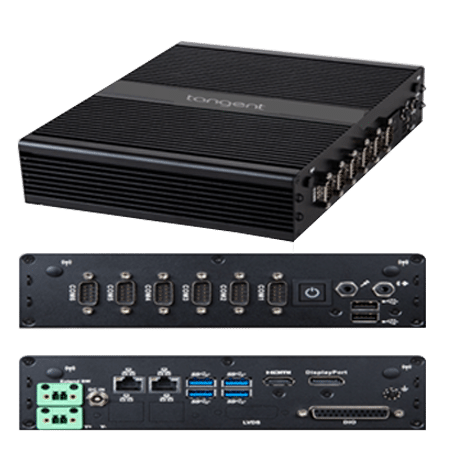

Rugged Mini G v3
Fanless | Wide Temp Operation
Multiple Input Power| Digital I/O
Applications
Video Display | Signage | Mobile Carts
Rugged Mini PC Features
Designed to handle 19 VDC system power input and wide temperature operation, Rugged Mini G v3 can be installed in a variety of industrial environments. Rugged Mini G v3 has a fanless design that is essential for dusty factory floors, and with a VESA 75/100 adapter plate, wall mounting brackets or DIN rail mounting, it offers many installation options. Standard with six COM ports, six USB ports and 8 IN/8 OUT DIO, you get maximum connectivity from this rugged industrial Mini PC.
Wide Temp Operation
Able to withstand a wide temperature operating range of 14° to 131°F, the Rugged Mini G v3 is a perfect computer for hot, cold, or fluctuating temperature conditions. Applications include factories and mills.
Multiple I/O Ports
Multiple I/O Ports - Video, USB, COM, LAN - affords the Rugged Mini G v3 maximum connectivity.
Rugged Mini G v3 Tech Specs Fanless Rugged Mini PC
Spec Sheet SPECIFICATIONS
| System | |
|---|---|
| Processor | Intel Alder Lake Processor N97, 4 Core, 4 Thread , 6MB Cache, up to 3.6Ghz Optional: Intel Alder Lake Core i3-N305, 8 Core, 8 Thread, 6MB Cache, Up to 3.8GHz |
| System Chipset | Alder Lake N SoC Integrated |
| Graphics Controller | Intel UHD Graphics |
| LAN Chipset | 2 x 2.5GbE: Intel I225-V |
| Audio | Realtek ALC897 |
| System Memory | Up to 16GB DDR5-4800 (1x SO-DIMM) |
| BIOS | AMI 128Mbit |
| TPM | TPM 2.0 (dTPM Infineon) |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| SSD/HDD | 1 x 2.5" SATA Bay |
| NVMe | 1 x M.2 2280 "B-Key" PCIe x1 SATA Only |
| Expansion | |
| M.2 | 1 x M.2 2230 "E" Key for WiFi 1 x M.2 2280 "B" key for SATA |
| Other Features | |
| Cooling Method | Fanless |
| I/O | |
| Video | 1 x Display Port (DP) 1 x HDMI |
| COM | 1 x DB9 Serial COM 1 RS232/422/485 1 x DB9 Serial COM 2 RS232 Optional: 2x DB9 Serial RS232 (COM 3 ~ 4) using M.2 module |
| USB | 6 x USB 2.0 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 |
| LAN | 2 x 2.5GbE RJ45 |
| WLAN | Intel WiFi6 Wireless AX200 + BT 5.2 LE (Optional) Intel WiFi6e Wireless AX210 + BT 5.2 LE (Optional) |
| Audio | 1 x Mic-in, 1 x Line-out |
| DIO | 4 IN / 4 OUT (DB9) |
| Others | 1 x Power Switch Optional: 2x CAN Bus (Alternate to COM 3 & 4) Using M.2 module |
| Operating System | |
| Windows | Windows 10 Pro 64bit Windows 10 IoT Enterprise SAC or LTSC |
| Power | |
| Power Input Voltage | 9 ~ 36 VDC |
| Power Connector | 1x Barrel Jack (Lockable) 1x 2pin Phoenix Terminal Connector |
| Power Adapter | External Power Adapter, 19V @ 3.42A |
| Environment | |
| Operating Temp. | 14° - 131°F (-10° - 55°C) with SSD |
| Storage Temp. | -4° - 176°F (-20° - 80°C) |
| Relative Humidity | 10 ~ 90%, Non-condensing |
| Shock | IEC61373 Category 1, Class B |
| Vibration | IEC61373 Category 1, Class B |
| Certification | CE, FCC, RCM, VCCI, BSMI, RoHS |
| Physical | |
| Enclosure Materials | Extruded Aluminum with Heavy Duty Steel |
| Dimension (WxHxD) | 7.87" x 5.90" x 2.16" (200 x 150 x 55 mm) |
| Weight | 3.05 lbs. (1.39 kg) |
| Mounting | Wall Mount Standard VESA 75/100 (Optional) DIN Rail (Optional) |
| Warranty | |
| Warranty | 1-Year Standard |
Rugged Mini PC
Rugged Mini PCs are built strong to withstand harsh conditions and rough handling. A Rugged Mini PC is substantially less susceptible to damage than non-rugged devices. Tangent rugged devices meet military standard specifications for dust, shock, vibration, rain, humidity, solar radiation, altitude, and temperature extremes. Tangent Mini Rugged PCs all come with powerful state-of-the-art Intel Processors and any one of our models ensures performance reliability that is unsurpassed.
OPERATING TEMPERATURES: One highly desirable feature of Rugged Mini PCs is their ability to withstand extreme temperatures. Tangent Rugged Mini PCs are functional in temperatures spanning from -40° to 158°F (-40° to 70° C).
SIZE: As the name implies, Rugged Mini PCs are compact and small. Ranging in size from 4.5" to 12.0" wide, 4.0" to 10.0" deep, and as small as 1.30" H.
ENVIRONMENTAL CONDITIONS: A waterproof Rugged Mini PC can be submersed in water and sprayed with high temperature water and steam. This is as rugged as it gets for clean room and isolation room environments.
MOBILE APPLICATIONS: Tangent In-Vehicle Mini Rugged PCs are designed specifically for use in the most demanding mobile applications.
INDUSTRY SPECIFIC REQUIREMENTS: Rugged Mini PCs designed for the healthcare industry meet 60601-1 Medical Certification standards.
